Artikelvariantentabelle anzeigen
| Art./Item | Beschreibung |
|---|---|
| 56014 | 600x620x850 |

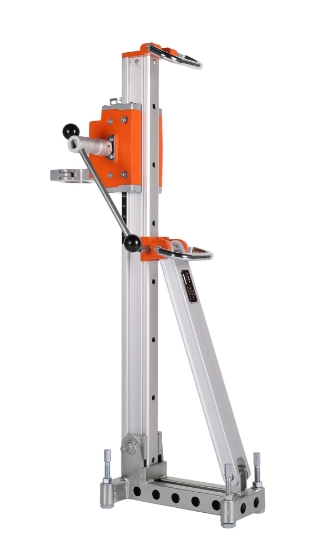

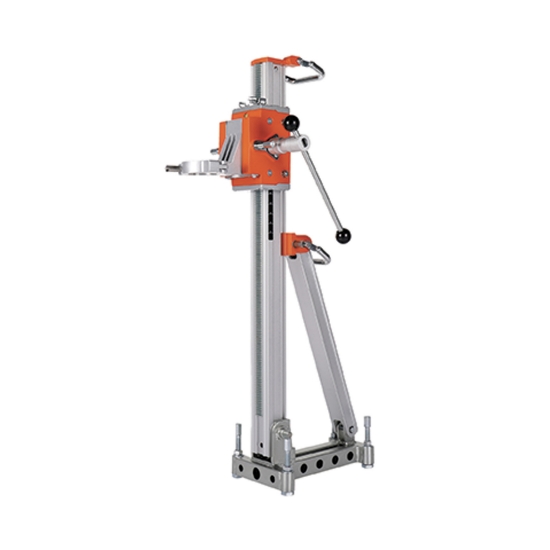

The KDMS 200 core drill stand, which can be used with most of the engines on the market, allows ease of use, positioning accuracy and solidity. Made of magnesium alloy AZ91D with the internal roller in aluminum alloy is equipped with a regulation of 45 a.s. and comes with a universal handwheel with hexagonal key 13mm. To ensure more accurate driving, the steel gear and teeth are installed with needle bearings.
TECHNICAL FEATURES:
- Max drilling diameter without spacer: 200 mm
- Fixing clamp bracket: 60 mm
- Effctive working height: 510 mm
- Column dimensions: 600x620x850
- Weight: 11,5 kg
- Keyless carriage lock lever
- Spirit level
- Gear shaft with automatic return to the inside
- Cutting depth scale
- Angular adjustment locking bracket
- Contrast bars
- Screw for 45° inclination
- Levelling screws
- High tickness steel base for an optimal stability and vibration resistance
INCLUDED EQUIPMENT:
- Motor sliding lever
- 60 mm clamp bracket for fixing motor
