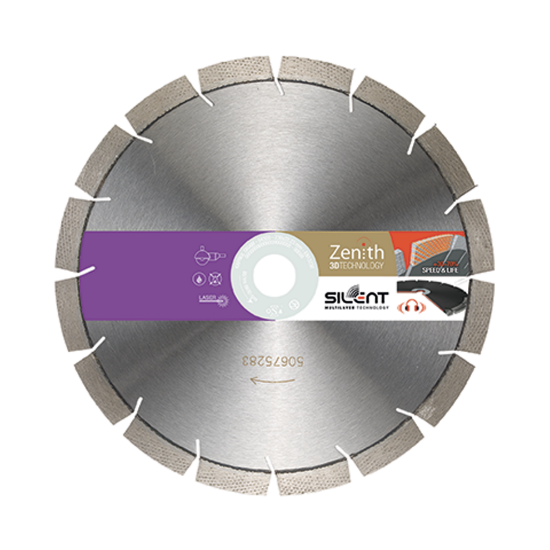

Zenith 3D F-LGS-SIL

Zenith 3D is the new disc that is made from 3D Evolution technology, has exceeded
limits set by old technologies. The diamond grains can now be set in various
configurations, equidistant and are perfectly aligned on each layer of the diamond
sector within the binder.
Thanks to this new technology, when a diamond layer wears down a new layer with the
same aligned grain quantity is equally exposed out of the binder.
Equal consumption of Zenith 3D allows the machines upon which the diamond tools
are mounted to keep the number of motor revolutions constant and never operates
under charge. The tool is constantly sharpened, maintaining maximum stability and
eliminates almost all load and vibration excess from the operator, especially in manual
applications.

MATERIALS TYPE AND QUALITY STANDARD

• Brick
• Concrete
• Reinforced Concrete
• Abrasives/Refractory
• Granite/Stone

    Quality PLATINUM

CUTTING INDICATIONS

    Dry cut

    Humid cut
