Art./Item | Länge (mt) |
---|---|
27947 | 6 |

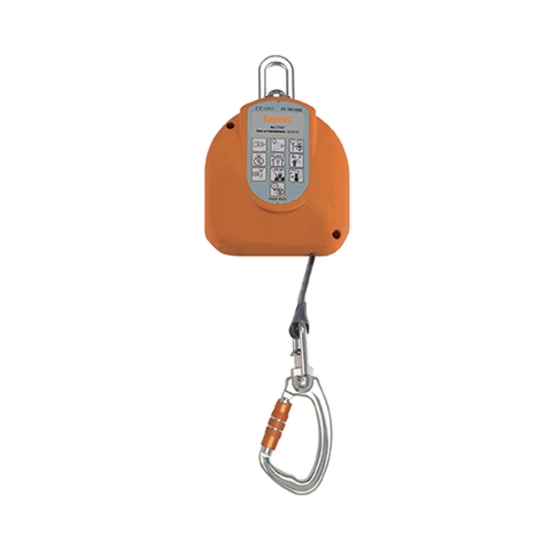

Kompaktes und leichtes Höhensicherungsgerät bestehend aus einem strapazierfähigen, 6 m langen Polyesterband, einem stoßfesten Schutzgehäuse aus Plastik und praktischer Drehwirbelaufhängung zum Auffanggurt. Das Befestigungssystem mit drehbarer Öse macht das Auffanggerät extrem sicher und komfortabel, um dem Bediener Bewegungsfreiheit zu gewährleisten.
Die Materialien und der Sturzmelder im Verbindugselement zur Befestigung machen dieses einziehbare Kapriol Höhensicherungsgerät besonders geeignet für Höhenarbeiten, bei denen Deckung oder stoßempfindliche Werkzeuge vorhanden sind.
TECHNISCHE SPEZIFIKATIONEN
- Band 17 mm breit und 6 m lang
- Drehwirbelaufhängung zum Auffanggurt
- Befestigung mit drehbarer Öse
- stoßfestes Schutzgehäuse
- Sturzmelder im Verbindugselement zur Befestigung
- Bruchlast 15 kN
- EN 360-Norm
MATERIALIEN
- Band: Polyester
- Gehäuse: ABS stoßfest
Pflege und Wartung
Kritische Faktoren
Regelmäßige Überprüfung
Produktkennzeichnung
Richtwerte zur Lebensdauer
Effetto pendolo
- Correct and regular maintenance helps prevent premature ageing of PPE. For this reason,
users are recommended to carefully respect all indications found in the user and maintenance
manual that accompanies each PPE and to follow the simple storage and preservation rules: - Keep away from sunlight and UV rays as these are the primary cause of ageing of PPE textile
fibers - Keep PPE away from direct heat sources as the synthetic textile fibers used to make harnesses,
lanyards, and energy absorption systems have a very low melting temperature - PPE must be stored in cool and dry areas, as humidity generates mold harmful to textile fibers
and corrosive on metal parts. - A periodic cleaning operation is essential to ensure a good durability of the PPE. A washing with lukewarm water eliminates surface dirt and that present inside the textile fibers
If the operator is connected to an anchorage point by a retracting device or a rope, in the event of a fall there may be hazardous and uncontrolled side swinging, the so-called pendulum effect. To decrease the risks associated to the pendulum effect, it is important that the fall protection device is positioned vertically in relation to the work area.
The operator must therefore work with a safety clearance of 30° below the anchorage point. When it is not possible to position the rope retracting or fall protection devices in a perpendicular position in relation to the anchorage point, it is necessary to foresee a number of deviation or sheave points to dampen the pendulum effect.
Empfohlene Verwendung

Spazi confinati
