279611

Der Sicherheitsdreibaum ist ein EN 795B-konformes Auffanggerät für Bediener, die gewöhnliche oder außergewöhnliche Wartungsarbeiten in Tanks, Schächten, Durchlässen usw. durchführen. Der Sicherheitsdreibaum wird in Verbindung mit der Winde zum Heben und zur Bergen von Bediener in engen Räumen verwendet.

Das Kapriol Sicherheitsdreibaum lässt sich in Höhe und Breite verstellen und garantiert eine maximale Tragkraft von 140 kg.

TECHNISCHE SPEZIFIKATIONEN

  • verstellbare Höhe von 147 bis 229 cm
  • verstellbare Breite von 119 bis 182 cm
  • maximale Tragkraft 140 kg
  • EN 795B-Norm



Pflege und Wartung

Kritische Faktoren

Regelmäßige Überprüfung

Produktkennzeichnung

Richtwerte zur Lebensdauer

Utilizzo: salita su corda fissa

  • Correct and regular maintenance helps prevent premature ageing of PPE. For this reason,
    users are recommended to carefully respect all indications found in the user and maintenance
    manual that accompanies each PPE and to follow the simple storage and preservation rules:
  • Keep away from sunlight and UV rays as these are the primary cause of ageing of PPE textile
    fibers
  • Keep PPE away from direct heat sources as the synthetic textile fibers used to make harnesses,
    lanyards, and energy absorption systems have a very low melting temperature
  • PPE must be stored in cool and dry areas, as humidity generates mold harmful to textile fibers
    and corrosive on metal parts.
  • A periodic cleaning operation is essential to ensure a good durability of the PPE. A washing with lukewarm water eliminates surface dirt and that present inside the textile fibers

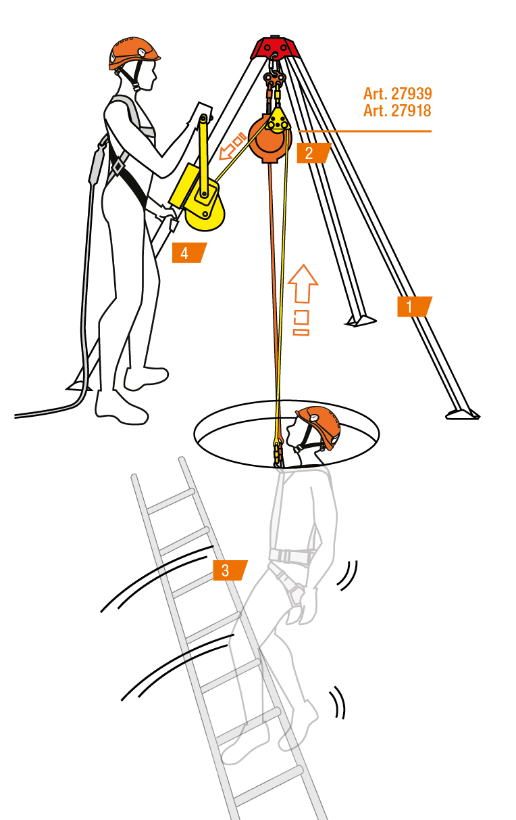

PHASE 1. Both the ascent rope and the fall arrester rope must be previously secured to the anchor points at height
PHASE 2. Connect the fall arrester device to the breast or back harness ring
PHASE 3. Connect the handle with the ascent bracket and the descender to the ascent/descent rope. In this phase the descender acts as a blocker during the repositioning of the handle
PHASE 4. To descend, simply release the handle with the ascent bracket connected and activate the descender

Empfohlene Verwendung

Spazi confinati
