Double lanyard with energy absorber

Fall arrest lanyard with two connectors

*
*
Find the Kapriol dealer closest to you
Show article variant table
Art./ItemApertura (mm.)Length (mt)
27906561,5

Two-connector fall arrest lanyard with wide 56 mm opening and safety lever for secure attachment to the structure. The double fall arrest lanyard allows progress by anchoring first one lanyard and then the other, guaranteeing total safety for the user.

The fall arrest lanyard's ferrule connector allows attachment to the harness, while the energy absorber, with 32 mm polyamide webbing and PE sheathing, reduces the force of impact during a fall.



TECHNICAL SPECIFICATIONS

  • Ferrule connector
  • Two connectors with 56mm opening and safety lever
  • Energy absorber with 32 mm webbing and PE containment casing
  • Length 1.5 m
  • Standard EN 355


MATERIAL

  • Connectors: steel
  • Webbing: polyamide
  • Containment casing: polyethylene

Maintenance and storage of PPE

Critical factors

PPE periodic checks and inspections

Product identification

Working life

Energy absorber

Falling factors

Correct and regular maintenance helps prevent premature ageing of PPE. For this reason, users are recommended to carefully respect all indications found in the user and maintenance manual that accompanies each PPE and to follow the simple storage and preservation rules:

  • Keep away from sunlight and UV rays as these are the primary cause of ageing of PPE textile fibers
  • Keep PPE away from direct heat sources as the synthetic textile fibers used to make harnesses, lanyards, and energy absorption systems have a very low melting temperature
  • PPE must be stored in cool and dry areas, as humidity generates mold harmful to textile fibers and corrosive on metal parts
  • A periodic cleaning operation is essential to ensure a good durability of the PPE
  • A washing with lukewarm water eliminates surface dirt and that present inside the textile fibers

The current legislation requires that each equipment must be subjected to periodic inspections:

  • Before, during and after use, the user must check the PPE conditions and integrity through a visual inspection after each use
  • At least every 12 months, PPE must be subjected to mandatory periodic checks and inspections by competent personnel authorized by the manufacturing company

Each PPE is accompanied by a manual and identity card that must be kept for the entire use duration of the product and filled in with the periodic inspections data.

LANYARD WITHOUT ENERGY ABSORBER



PHASE 1: situation of potential fall risk
PHASE 2: (Pic. X) during the fall the lanyard does not perform a shock-absorbing function
PHASE 3: (Pic. X) the energy caused by the fall is absorbed completely by the body of the operator / l’énergie provoquée par la chute se répercute complètement sur le corps de l’opérateur



LANYARD WITH ENERGY ABSORBER



PHASE 1: situation of potential fall risk
PHASE 2: (Pic. Y) in the fall, the lanyard performs a shock-absorbing function thanks to the effect of the energy absorber
PHASE 3: (Pic. Y) the energy caused by a fall is remarkably reduced by the effect of the energy absorber

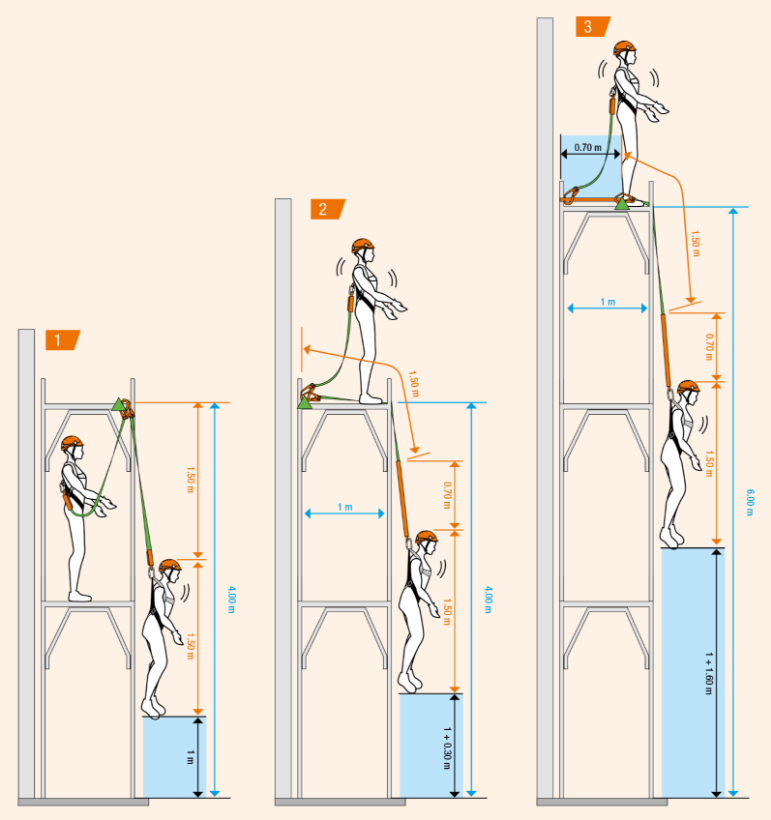

A FATTORE DI CADUTA 0

Il punto di ancoraggio è posto al di sopra della testa dell'operatore; il dispositivo anticaduta risulta essere completamente disteso. In caso di caduta si ha la minor distanza tra il piano di calpestio dell'operatore e il possibile ostacolo sottostante.



B FATTORE DI CADUTA 1

Il punto di ancoraggio è posto allo stesso livello del punto di attacco dell'imbracatura. In questo caso la caduta è pari alla lunghezza del cordino + la distanza del assorbitore di energia intervenuto.



C FATTORE DI CADUTA 2

Il punto di ancoraggio è posto sullo stesso piano di calpestio dell'operatore. In questo caso la caduta è pari a due volte la lunghezza del cordino + la distanza dell'assorbitore di energia intervenuto.

Recommended use

Inclined surface

Scaffolding

Trellis

Restraint (on fixed surface)
